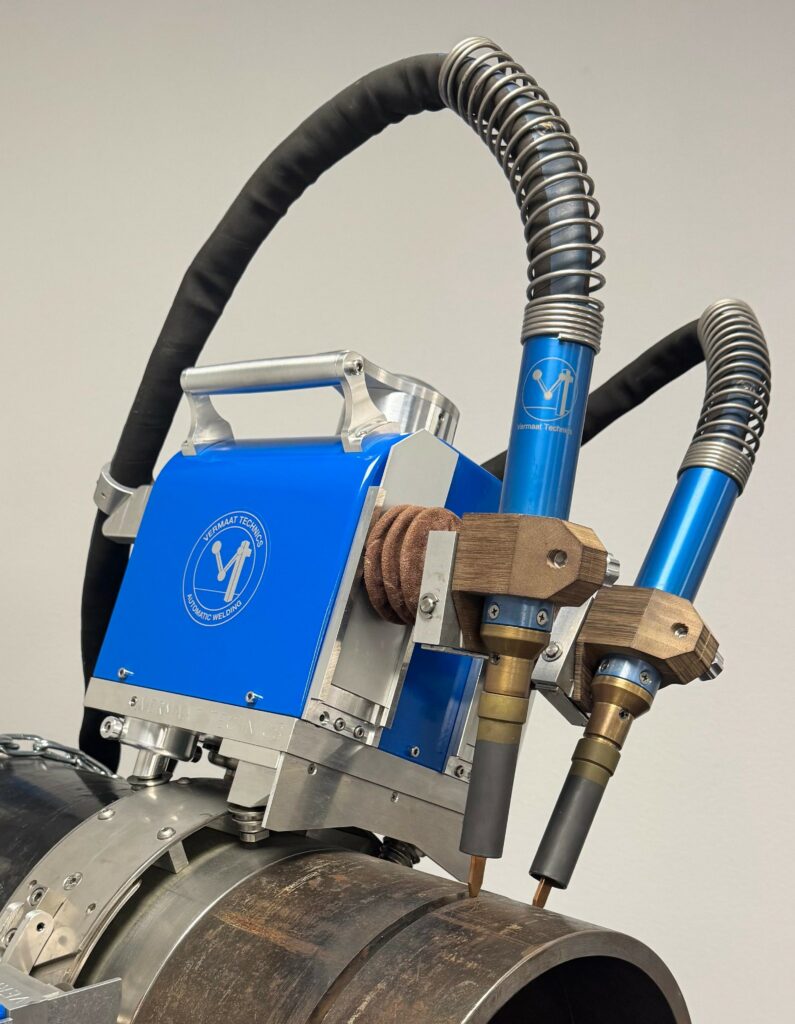

Dual Bug

Dual-Torch Automated Welding Carriage



Boost productivity on straight or circumferential seams with our Dual Torch Bug. This compact motorized system steers both torches vertically and horizontally—so every bead lands exactly where it should. Compared to the Single Torch Bug, the Dual Torch Bug delivers a significantly higher deposition rate, allowing welds to be completed faster while maintaining consistent precision and quality.



Why fabricators choose it

  • Triple-process ready – Works with MIG/MAG (GMAW), Flux-Cored (FCAW), and TIG (GTAW)
  • Power-source friendly – Fully compatible with Miller®, Lincoln®, and Fronius® machines
  • BRC handheld remote – Our in-house build controller lets welders adjust positioning, speed , amperage and more for the best results.
  • Certified welding positions – Delivers consistent results in 2G, 5G, and 6G positions
  • Dual-side capability – Each bug can run on either side of the pipe
  • High-speed travel: up to 6 000 mm/min
  • Oscillation speed: up to 5 000 mm/min | Stroke: up to 80 mm | Dwell: 01 s – continuous
  • Height stroke: 46 mm with automatic stick-out control
  • Climbing force: hauls more than 3× its own weight (carriage + umbilical)
  • Lightweight: 16 kg / 35 lb—one-person setup
  • Pipe diameters: from 152 mm Ø (6 in) upward
  • Operating temp.: –50 °C to +50 °C for arctic or desert duty
